Earth Science Frontiers ›› 2020, Vol. 27 ›› Issue (1): 112-122.DOI: 10.13745/j.esf.2020.1.13
Previous Articles Next Articles
TIAN Jiao1,2,3(), PANG Zhonghe1,2,3,*(), ZHANG Rui4
Received:
2019-03-29
Revised:
2019-08-30
Online:
2020-01-20
Published:
2020-01-20
Contact:
PANG Zhonghe
CLC Number:

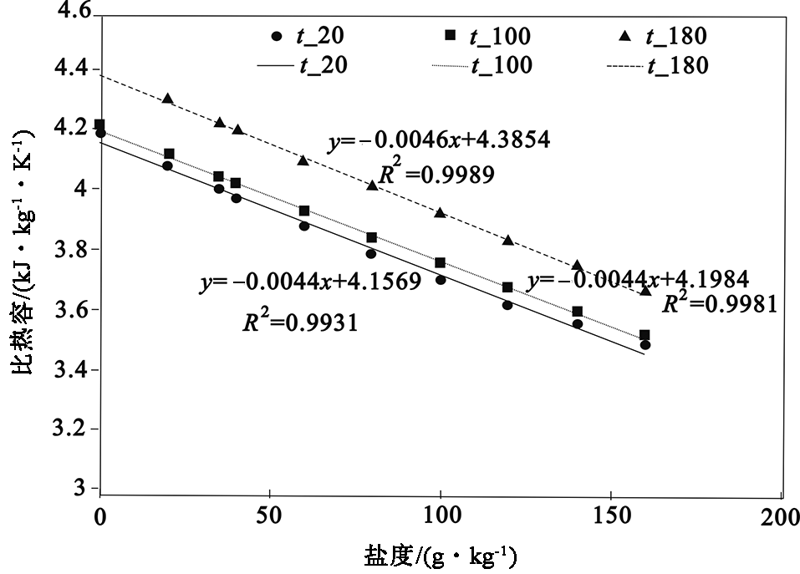

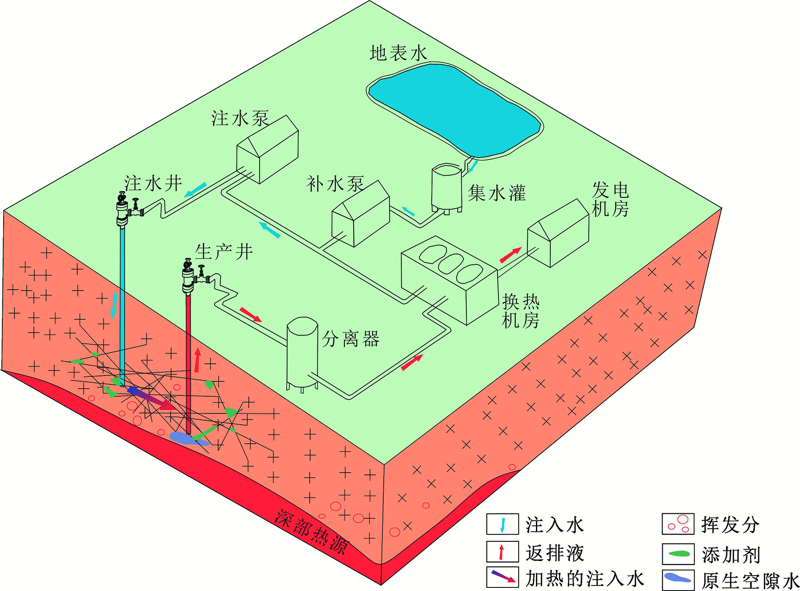

TIAN Jiao, PANG Zhonghe, ZHANG Rui. The application of FixAl and isotopic methods in the study of flowback fluids from Enhanced Geothermal Systems (EGS)[J]. Earth Science Frontiers, 2020, 27(1): 112-122.
项目 | 国家 | 试验 年份 | 井深/m | 注-采井 间距/m | 储层 温度/℃ | 返排液 温度/℃ | 返排液 pH | 注水流速 /(L·s-1) | 储层 岩性 | 质量浓度/(mg·L-1) | 参考文献 | |||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TDS | Na | K | Ca | Mg | Cl | SO4 | HCO3 | F | SiO2 | Fe | Al | |||||||||||||||||||||||
Soultz-sous- Forêts | 法国 | 1997 | 3 876 | 450 | 160 | 142 | 4.8 | 25 | 富黑云母及 角闪石花岗岩 | 90 690.25 | 24 472 | 3 377.4 | 6 880 | 139.44 | 55 522 | 225.6 | 147.62 | 4 | 139.8 | 30.1 | na | [11] | ||||||||||||
Bad Urach | 德国 | 1978 | 3 325 | na | 143 | 143 | 4.2 | na | 花岗片麻岩 | 2 144.2 | 558.9 | 159.5 | 150 | 0.4 | 1 275.4 | na | na | na | 156.6 | 110.9 | 0.6 | [12] | ||||||||||||
Fenton Hill | 美国 | 1992 | 4 010 | 310 | 327 | 182 | 7 | 5.5~6.5 | 黑云母花 岗闪长岩 | 2 632.65 | 899.3 | 88.9 | 18 | 0.1 | 955 | 377.3 | 588.1 | 17 | 423.6 | 0.800 8 | 1.2 | [13] | ||||||||||||
Hijiori | 日本 | 2002 | 1 800~ 2 200 | 130 | 260 | 170 | 9.03 | 16.67 | 石英闪长岩 | 1 092.9 | 373.9 | 54.6 | 8.3 | 0.1 | 391.4 | 202.1 | 125 | na | 370.5 | na | na | [14] | ||||||||||||
Ogachi | 日本 | 1993 | 1 100 | 80 | 170~230 | 108 | na | 12.5~20 | 花岗闪长岩 | 804.5 | 299 | 17.6 | 4 | 0 | 49.7 | 153.6 | 561.2 | 6.7 | 162 | na | na | [15] | ||||||||||||
Rosemanowes | 英国 | 1988 | 2 780 | 250 | 99.8 | 99.8 | 8.8 | 21.6 | 花岗岩 | 302.34 | 100.7 | 3.4 | 13.76 | 0.08 | 73.1 | 74.4 | 73.8 | 11.4 | 65.4 | 0.02 | 0.2 | [16] | ||||||||||||
Habanero Cooper Basin | 澳大 利亚 | 2008 | 4 421 | 560 | 250 | 200 | 7.6 | 14 | 花岗岩 | 12 750.4 | 4 942.9 | 643.5 | 25.45 | 0.45 | 8 235 | 36 | na | 17 | 153 | na | na | [16-18] |

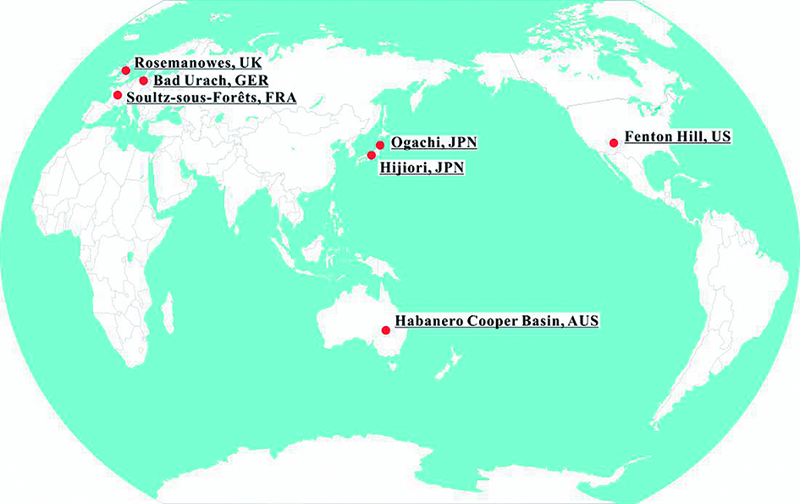

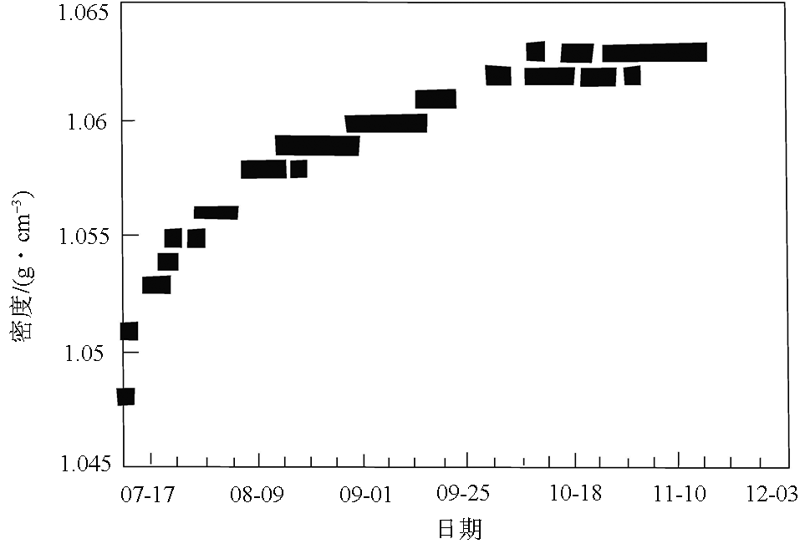

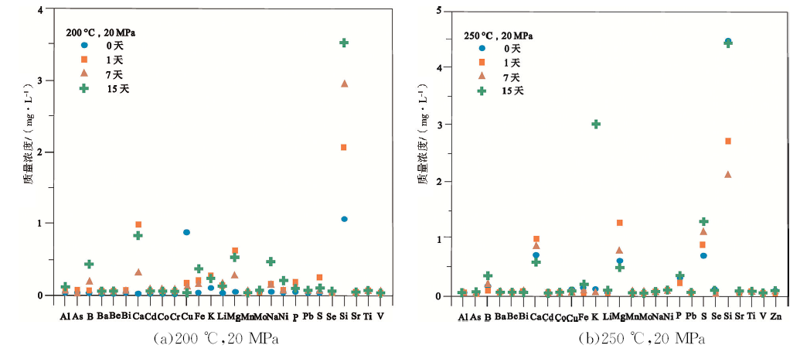

Table 1 Compilation of selected physico-chemical data from seven EGS projects around the world
项目 | 国家 | 试验 年份 | 井深/m | 注-采井 间距/m | 储层 温度/℃ | 返排液 温度/℃ | 返排液 pH | 注水流速 /(L·s-1) | 储层 岩性 | 质量浓度/(mg·L-1) | 参考文献 | |||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TDS | Na | K | Ca | Mg | Cl | SO4 | HCO3 | F | SiO2 | Fe | Al | |||||||||||||||||||||||
Soultz-sous- Forêts | 法国 | 1997 | 3 876 | 450 | 160 | 142 | 4.8 | 25 | 富黑云母及 角闪石花岗岩 | 90 690.25 | 24 472 | 3 377.4 | 6 880 | 139.44 | 55 522 | 225.6 | 147.62 | 4 | 139.8 | 30.1 | na | [11] | ||||||||||||
Bad Urach | 德国 | 1978 | 3 325 | na | 143 | 143 | 4.2 | na | 花岗片麻岩 | 2 144.2 | 558.9 | 159.5 | 150 | 0.4 | 1 275.4 | na | na | na | 156.6 | 110.9 | 0.6 | [12] | ||||||||||||
Fenton Hill | 美国 | 1992 | 4 010 | 310 | 327 | 182 | 7 | 5.5~6.5 | 黑云母花 岗闪长岩 | 2 632.65 | 899.3 | 88.9 | 18 | 0.1 | 955 | 377.3 | 588.1 | 17 | 423.6 | 0.800 8 | 1.2 | [13] | ||||||||||||
Hijiori | 日本 | 2002 | 1 800~ 2 200 | 130 | 260 | 170 | 9.03 | 16.67 | 石英闪长岩 | 1 092.9 | 373.9 | 54.6 | 8.3 | 0.1 | 391.4 | 202.1 | 125 | na | 370.5 | na | na | [14] | ||||||||||||
Ogachi | 日本 | 1993 | 1 100 | 80 | 170~230 | 108 | na | 12.5~20 | 花岗闪长岩 | 804.5 | 299 | 17.6 | 4 | 0 | 49.7 | 153.6 | 561.2 | 6.7 | 162 | na | na | [15] | ||||||||||||
Rosemanowes | 英国 | 1988 | 2 780 | 250 | 99.8 | 99.8 | 8.8 | 21.6 | 花岗岩 | 302.34 | 100.7 | 3.4 | 13.76 | 0.08 | 73.1 | 74.4 | 73.8 | 11.4 | 65.4 | 0.02 | 0.2 | [16] | ||||||||||||
Habanero Cooper Basin | 澳大 利亚 | 2008 | 4 421 | 560 | 250 | 200 | 7.6 | 14 | 花岗岩 | 12 750.4 | 4 942.9 | 643.5 | 25.45 | 0.45 | 8 235 | 36 | na | 17 | 153 | na | na | [16-18] |
矿物 | lg(Q/K) | ||||||
---|---|---|---|---|---|---|---|
Soultz-sous-Forêts | Bad Urach | Fenton Hill | Hijiori | Ogachi | Rosemanowes | Habanero Cooper Basin | |
方解石 | -2.027 8 | -90.393 0 | 0.827 8 | 1.467 9 | 1.130 3 | 1.163 5 | -98.693 0 |
白云石 | -4.530 0 | -182.145 7 | 0.476 8 | 2.101 5 | -51.484 8 | 1.109 6 | -197.817 4 |
二氧化硅 | -0.624 1 | -0.660 4 | -0.288 2 | -0.809 4 | -0.812 4 | -1.011 8 | -0.834 3 |
Table 2 lg(Q/K) values of precipitable minerals at the wellhead temperature
矿物 | lg(Q/K) | ||||||
---|---|---|---|---|---|---|---|
Soultz-sous-Forêts | Bad Urach | Fenton Hill | Hijiori | Ogachi | Rosemanowes | Habanero Cooper Basin | |
方解石 | -2.027 8 | -90.393 0 | 0.827 8 | 1.467 9 | 1.130 3 | 1.163 5 | -98.693 0 |
白云石 | -4.530 0 | -182.145 7 | 0.476 8 | 2.101 5 | -51.484 8 | 1.109 6 | -197.817 4 |
二氧化硅 | -0.624 1 | -0.660 4 | -0.288 2 | -0.809 4 | -0.812 4 | -1.011 8 | -0.834 3 |

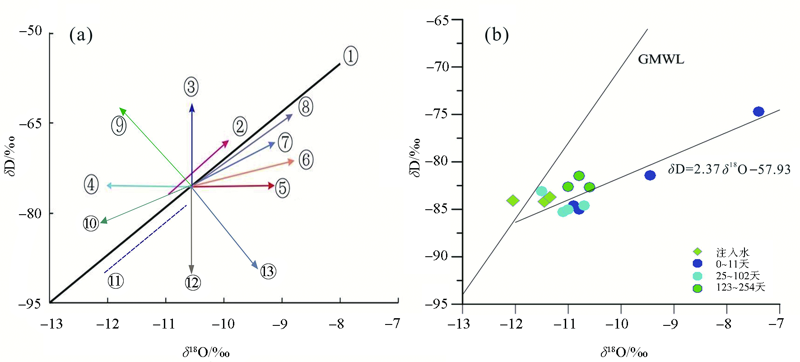

Fig.6 Models of stable isotopes in 13 processes (a) and plots of δD-δ18O for injected water and flowback fluid samples in different stages of the circulation test in Fenton Hill EGS (b)
